#125

27.06.2017, 11:44 PM

Für die konkrete Bestückung der AFE-Briefmarke TPA3118 habe ich nochmal die Simulation aktualisiert.

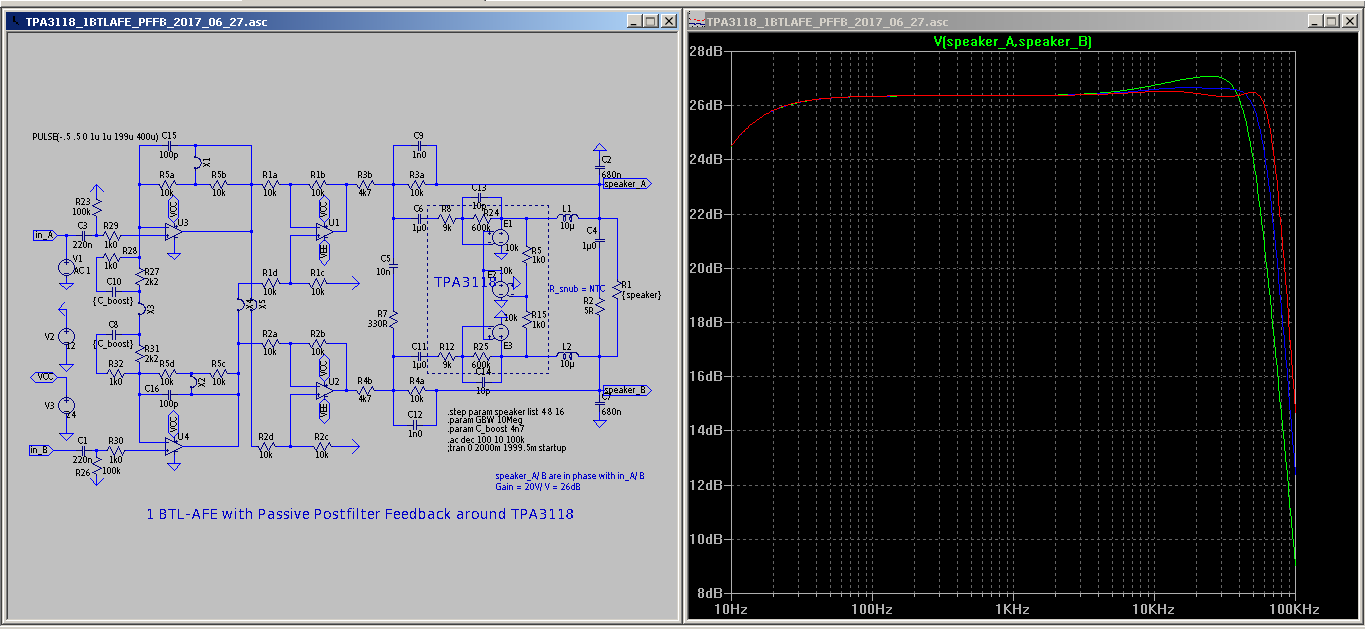

Gezeigt ist der Amplituden-Frequenzgang mit 4, 8 und 16 Ohm reeller Last.
