22.04.2017, 08:43 PM (Dieser Beitrag wurde zuletzt bearbeitet: 22.04.2017, 08:44 PM von voltwide.)

Nach zahlreichen Fehlschlägen schon in der Simulation zeichnet sich ein erstes Erfolg versprechendes Konzept ab:

.asc

afe_type1_gain_2017_04_22.asc (Größe: 5,44 KB / Downloads: 672)

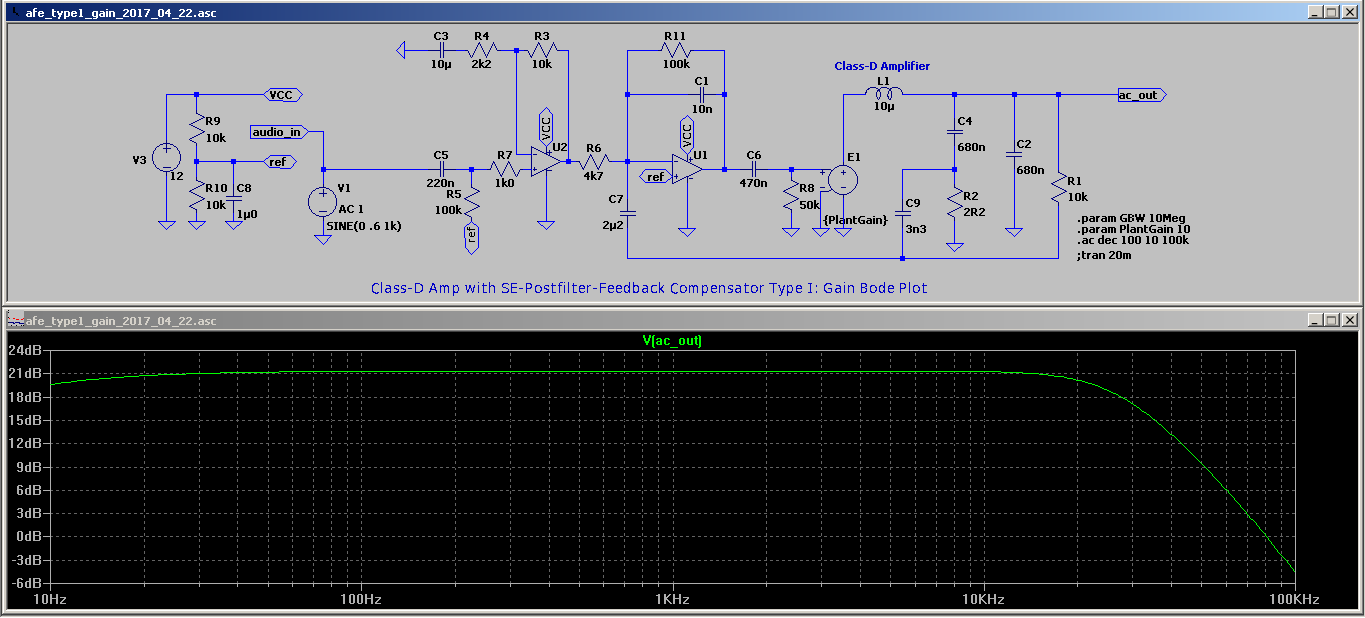

Gezeigt ist hier der Verstärkungsfrequenzgang bei unbelastetem! Ausgang.
